Large DIY Bioethanol Firebox

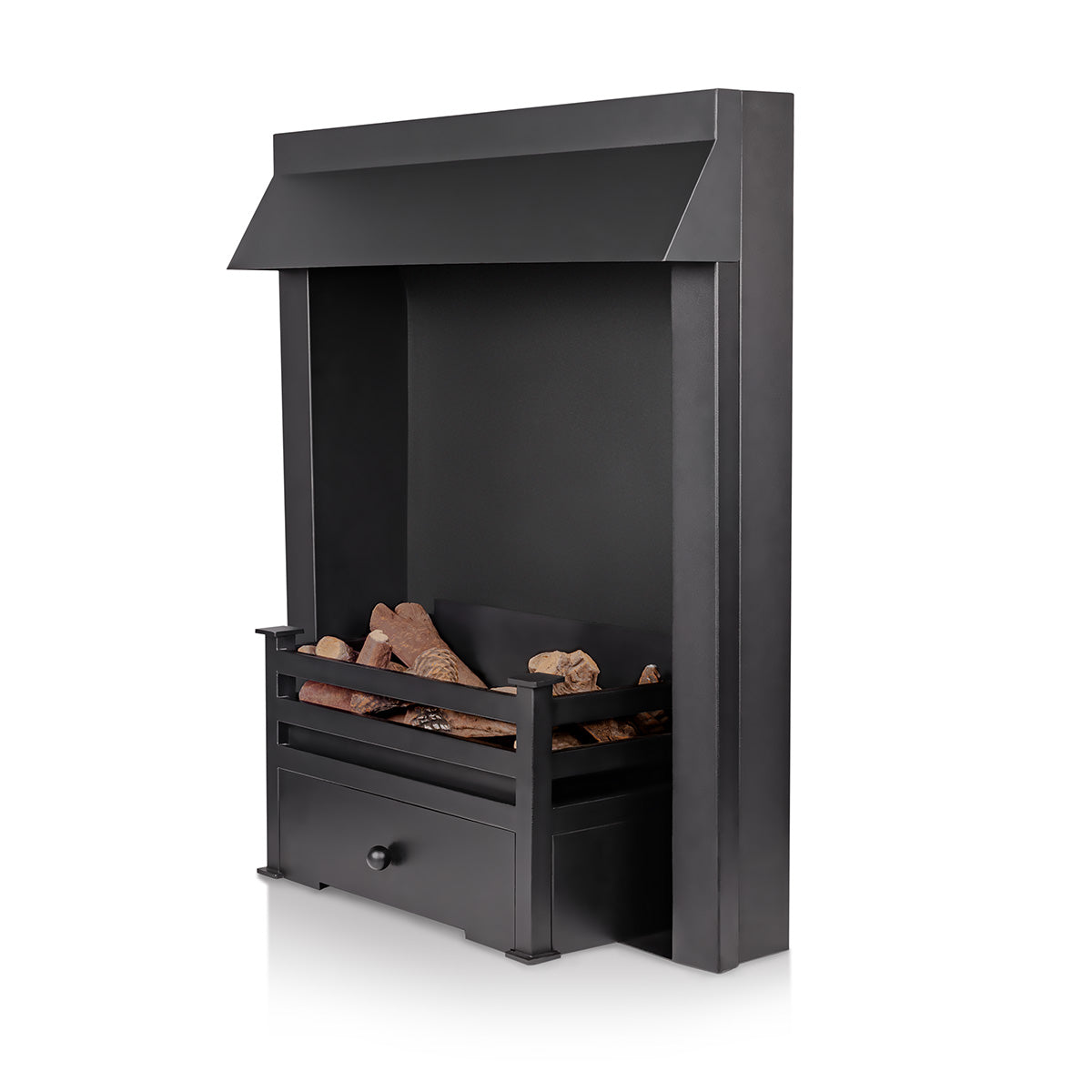

Introducing our new Large DIY Bioethanol Firebox

We are glad to introduce you the latest addition to our Bioethanol Fireplaces Solution collection, our Large DIY bioethanol Firebox, another option for you to easily and quickly create your dream fireplace with a mantelpiece of your choice.

We specially designed the Large DIY Bioethanol Firebox to fit our ARGYLL Bioethanol Grate which holds our new Small Black Diamond Insert of a 1.3L capacity.

Additionally, the included Black Spacer Trim (frame) is a practical installation accessory that boxes the sides of the inset fire. It allows the fireplace to be fitted flush against a flat wall or accommodate a shallower recess without requiring major wall modifications or structural building work. The spacer also brings the unit forward to compensate for reduced depth at the back where required.

At the same time, the double thickness and the heat shield at the back provide a durable heat protection for your wall as our unique venting system pushes the heat out quickly into the room, also thanks to the special hood on top of the box.

In the box of the DIY Bioethanol Firebox:

• Black firebox, double layered with built in vent, heat shield, and top hood.
• Argyll Grate with 1.3L Black Small Burner
• Engraved sliding lid featuring Fragrance Diffusers for Aura Oils
• Black steel spacer (frame)
• Control/extinguishing tool

• Funnel
• 9-pieces Cones and Logs Set
• User Instructions

NOTE: Please make sure to use a non-flammable material around the Large DIY Bioethanol Firebox. We recommend using Vermiculite Board for this purpose.

Technical Info

• Dimensions:
  W 710mm
  H 810mm
  D 251mm
• Burner capacity: 1.3L
• Burning time: 3-6 hrs (depending on the size of the aperture); flame height adjustable.
• Heat output guidance: 1-3kW (This is more than electric fires and comparable to most flueless gas fires.); heat is adjustable.
• Fuel suitable: Bioethanol Fuel (minimum ethanol content: 96%). NOTE: Gel fuel is NOT suitable.

Delivery

When in stock, delivery within approx. 2-5 working days.

Requires an address where someone is available to sign all day or a secure location for the courier.

Free Delivery promotion: please note that the delivery is only free to UK mainland (go to our DELIVERY section for postcodes which qualify for a delivery supplement).

Downloads

• DIY Large Bioethanol Firebox - SIZE DRAWING
